P. 330

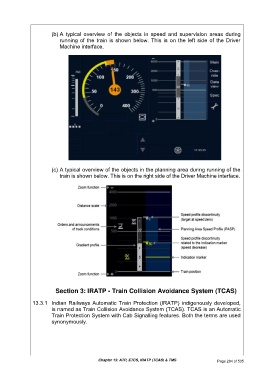

(b) A typical overview of the objects in speed and supervision areas during
running of the train is shown below. This is on the left side of the Driver
Machine interface.
(c) A typical overview of the objects in the planning area during running of the
train is shown below. This is on the right side of the Driver Machine interface.
Section 3: IRATP - Train Collision Avoidance System (TCAS)
13.3.1 Indian Railways Automatic Train Protection (IRATP) indigenously developed,
is named as Train Collision Avoidance System (TCAS). TCAS is an Automatic
Train Protection System with Cab Signalling features. Both the terms are used
synonymously.
Chapter 13: ATP, ETCS, IRATP (TCAS) & TMS Page 284 of 535
